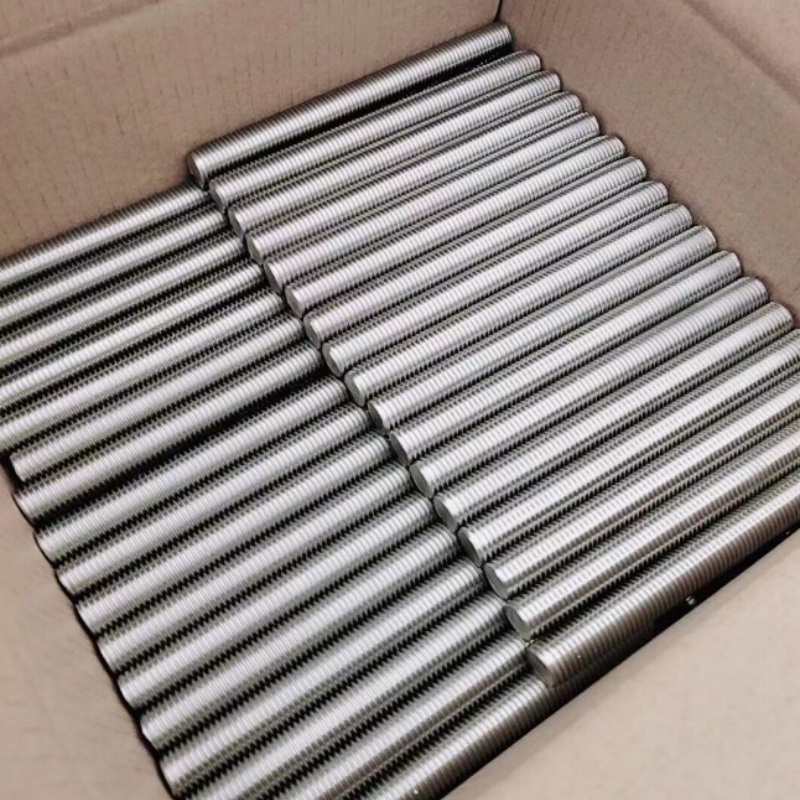

Stainless Steel Threaded Rod

Description

Stainless steel threaded rods (also known as fully threaded rods or threaded bars) are headless cylindrical fasteners made of stainless steel such as 304, 316, and 201. They conform to international and national standards such as DIN975 and GB15389, and are available in various diameters and lengths from M3 to M24. They are widely used in fields with high requirements for corrosion resistance and hygiene, such as building curtain walls, pipe supports, medical devices, food processing equipment, and marine engineering.

Features of Stainless Steel Threaded Rods:

1. Excellent Corrosion Resistance: Stainless steel threaded rods rely on a chromium oxide protective layer formed by chromium, providing significantly stronger rust resistance than carbon steel in humid, chemical, and marine environments. Furthermore, surface rust is mostly shallow red rust, which does not easily penetrate into the substrate.

2. Good Mechanical Strength and Toughness: Stainless Steel Threaded Rods are commonly available in performance grades A2-70 or A4-70 (tensile strength approximately 700 MPa). While they cannot achieve the ultra-high strength of grade 10.9 through heat treatment like carbon steel, they possess sufficient yield strength and ductility, making them suitable for most conventional fastening applications.

3. Hygiene and Temperature Resistance: Stainless Steel Threaded Rods have a smooth surface that is easy to clean, eliminating the risk of plating peeling and meeting hygiene standards in the food, medical, and pharmaceutical industries. Some martensitic stainless steel materials (such as 410) also exhibit good heat resistance and wear resistance.

4. Fully Threaded Design: Stainless Steel Threaded Rods are fully threaded throughout, with no smooth section. Custom lengths are available (commonly 1 to 3 meters), facilitating flexible cutting and multi-point fixing.

5. No surface treatment required: Stainless steel threaded rods typically retain their natural metallic color, eliminating the need for galvanizing or chrome plating and preventing contamination or failure caused by plating peeling.

6. Machinability: Compliant with standards such as DIN 976 and GB 15389, thread tolerances are mostly 6g, offering good screw-in properties. However, due to the cold work hardening characteristics of stainless steel, torque must be controlled during installation to prevent breakage.

Applications of Stainless Steel Threaded Rods:

1. Thick-walled connection: Stainless steel threaded rods are specifically designed for connecting parts where one component is thick and a compact structure is required. One end screws into the base material, and the other end is secured with a nut.

2. Frequent disassembly: Because it does not damage the internal threads of the base material, stainless steel threaded rods are suitable for equipment maintenance scenarios requiring frequent disassembly and assembly.

3. Adaptability to special spaces: The headless design allows it to be embedded in narrow spaces or used as a transition piece to connect components of different materials.

4. Injection Molding and Extrusion Machinery: As a core component of the screw, Stainless Steel Threaded Rods are used to process plastics such as PC and PVC, requiring wear resistance and corrosion resistance.

5. Pump and Valve Systems: Used as valve stems or drive rods, utilizing the heat-treated hardness of martensitic stainless steel (such as 416) to ensure sealing and operational accuracy.

6. Pipe and Flange Fixing: Stainless Steel Threaded Rods, used with nuts, tightly connect pipes, valves, or flanges, commonly found in chemical and food processing pipelines.

7. Thread Repair and Reinforcement: On soft materials such as aluminum and magnesium alloys, used with threaded inserts, they can repair stripped holes or improve connection strength.

8. Adjustment and Support: Used as adjusting rods, booms, or supports in mechanical equipment, allowing for height or position adjustment through rotation.

9. Harsh Environment Operations: 316/316L threaded rods are widely used in marine platforms, aerospace, and medical devices, resisting salt spray and acid/alkali corrosion.

Product Details and Specification

Product name	High strength threaded rod
Standard	DIN, ANSI, GB, JIS, BSW
Materials	carbon steel, alloy steel, stainless steel, etc.
Grades	a2, a4, 4.8, 8.8, 10.9, 12.9 .etc, A2-70, A4-80, A193-B7, B16, L7 .ect.
Length	1000mm-3000mm
Surface treatment	black, galvanized, dacromet, hot dip galvanized, etc
Application	petrochemical industry, valve pipeline, mechanical equipment, Structural Steel, Metal Building, Oil&Gas, Tower&Pole, Wind Energy, Mechanical Machine, Automobile, Home Decorating, .etc.
Our advantage	One-stop shopping, High quality, Competitive price, Timely delivery, Technical support, Supply Material and Test Reports, Samples for free.
Notice	Please lets know the Size, quantity, Material or Grade, surface, If it is special and Non-standard products, please supply the Drawing or Photos or Samples to us.

General product parameter

D	M10	M12	M16	M20	M24	M27	M30	M33	M36	M39	M56
P	1.5	1.75	2	2.5	3	3	3.5	3.5	3	3	4
L	40-300	50-300	60-300	70-300	100-300	100-300	120-400	140-400	140-500	140-500	190-500

COMPANY PROFILE

Shandong Winners is the development, production, sales and service for an integrated enterprise.
We can supply: Hex bolts,Hex nuts,Wedge Anchor,Wood Screw, L Bolts, anchor bolts, studs, high strength products and so on, widely used in major machinery industries.The best quality, pricing and service is our Pledge to customers. In order to keep our promises, we have strict requirements and standards for the purchasing of raw materials.

Product Display

Bolts: Hex Bolts AS1252, ANSI B18.2.1, ASTM A325, ASTM A490, ASTM A563, ASTM A307, DIN7990, DIN6914, DIN931/933, DIN960/961, DIN558, DIN601, Square Bolts BS7419, Carriage Bolts DIN603, Guardrail Bolts, Flange Bolts DIN6921, Sockets Bolts DIN912, DIN7991, ISO7380, Track Bolts, Fish Bolts, Railway Bolts, Anchor Bolts, Hanger Bolts, U Bolts, T Bolts .etc.

Nuts: Hex Nuts ANSI/ASME B18.2.2, ASTM A194 2H, DIN934, DIN555, DIN6915, DIN439, DIN936, ISO4032, AS1112, UNI5587, Nylon Nuts DIN985, DIN982, DIN980, ANSI, Flange Nuts DIN6923, Cap Nuts DIN1587, DIN917, Coupling Nuts DIN6334, Wing Nuts DIN315, Square Nuts DIN557, DIN562, Weld Nuts DIN928, DIN929, Slotted Nuts DIN935, DIN937, Knurled Nuts DIN466, DIN467, DIN6303, Round Nuts, K-lock Nuts, T-Nuts, Eye Nuts, Rivet Nuts, special parts .etc.

Washers: Flat Washers DIN125A, DIN126, DIN440, DIN433, DIN7989, DIN7349, DIN9021, DIN6916, BS4320A/B/C/E, USS/SAE AS1252, F436/F436M, NFE-25-513 Fender Washers, Spring Lock Washers ANSI/ASME B 18.21.1, DIN127B, DIN7980, JIS B 1251, AS1085, Square Washers, Tooth Lock Washers DIN6797A, DIN6797J, DIN6797V, DIN6798A, DIN6798J, DIN6798V, DIN7967 pall nut, Wave Washers DIN137A/DIN137B, DIN2093, DIN6319, DIN432, AS1252 .etc.

Anchors: Sleeve Anchors, Bolt Anchors, Drop In Anchors, Cut Anchors, Wedge Anchors, Fishlike Anchors, Heavy Duty Anchor, Metal Frame Anchors, Metal Hit Anchors, Chemical Anchors, Hammer Drive Anchors, Split Drive Anchors, Hollow Wall Anchors, Nylon anchors .etc.

Screws: Wood Screws DIN571, DIN7995, DIN7996, DIN7997, DIN95, DIN96, DIN97, Machine Screws DIN84, DIN85, DIN963, DIN964, DIN965, DIN966, DIN7985, Set Screws DIN913, DIN914, DIN915, DIN 916, DIN417, DIN427, DIN438, DIN551, Self Tapping Screws Self Drilling Screws DIN7981, DIN7982, DIN7983, DIN7971, DIN7972, DIN7973, DIN7504, Drywall Screws .etc.

OUR workshop

Packing & Delivery

Shipping By Sea

1. Standard packaging
2. Packaging according to customer requirements

The normal package is wooden box (Size: L*W”H). If export to European countries,the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers
special request.
